Cudy R700 Gigabit Multi-WAN VPN Router

The Cudy R700 Gigabit Multi-WAN VPN Router brings next-generation wireless performance to modern homes and offices, delivering seamless connectivity and extended coverage with industry-leading Wi-Fi 6 technology. Designed to eliminate dead zones and enable high-speed wireless expansion, the R700 combines advanced dual-band speeds with smart roaming features, ensuring uninterrupted streaming, conferencing, and gaming across your entire space.

With combined speeds of up to 3000 Mbps (2402 Mbps on 5 GHz + 574 Mbps on 2.4 GHz), the R700 ensures high-efficiency data delivery across multiple connected devices. Whether you’re working remotely, managing smart home systems, or supporting high-definition streaming, the Cudy R700 delivers consistent, high-speed performance.

EasyMesh compatibility allows the R700 to integrate effortlessly with other mesh-enabled routers and extenders, forming a unified, scalable network with seamless roaming capabilities. Smart LED signal indicators simplify placement for optimal coverage, while the device’s three-in-one functionality — operating as a repeater, access point, or Gigabit bridge — ensures flexible deployment in diverse network environments.

Equipped with a full Gigabit Ethernet port, the R700 is ideal for bandwidth-heavy wired devices, including smart TVs, game consoles, and desktop PCs. Enhanced security protocols, including WPA3-SAE, provide advanced encryption and improved network protection for modern smart homes and small businesses.

Compact, powerful, and future-ready, the Cudy R700 redefines what a range extender can do — providing the speed, control, and flexibility to match today’s digital lifestyles.

FEATURES:

• AX3000 dual-band Wi-Fi 6 (2402 Mbps + 574 Mbps)
• EasyMesh supports seamless mesh networking
• Dual-core CPU for stable multi-device performance
• Gigabit Ethernet port for high-speed wired access
• Smart signal indicator for optimal placement
• Three-in-one operation: Repeater, AP, Gigabit Bridge
• Advanced WPA3 encryption for secure connectivity

SPECIFICATIONS:

• CPU
• CPU Details: 880 MHz Dual-Core
• Memory/Storage
• Flash/ROM: 16 MB (128 Mbit) NOR
• DDR/RAM: 128 MB (1 Gbit) DDR3
• Interfaces
• Gigabit RJ45 Ports: 5
• Ethernet Notes: 1× WAN Port, 3× WAN/LAN Ports, 1× LAN Port
• LED:
  • Power
  • System
  • Speed/Link/ACT of Ethernet Port
• Physical Buttons: Reset Button
• Power Input: DC Jack
• Power
• Power Methods: DC
• DC: 12V 1A
• Power Adapter:
  • Input: 100 ~ 240 V, 50/60 Hz AC
  • Output: 12V 1A DC
• Reliability
• Environment:
  • Operating Temperature: 0 ℃ ~ 40 ℃ (32 ℉ ~104 ℉)
  • Storage Temperature: -40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉)
  • Operating Humidity: 10% ~ 90% non-condensing
  • Storage Humidity: 5% ~ 90% non-condensing
  • Grounding Methods: Grounding Point
• Certifications: FCC, CE
• Mechanical
• Installation:
  • Desktop
  • Wall-mount
• Casing Material: Metal
• Dimension: 1.19×8.5×2.8 cm
• Product Weight: 273 g

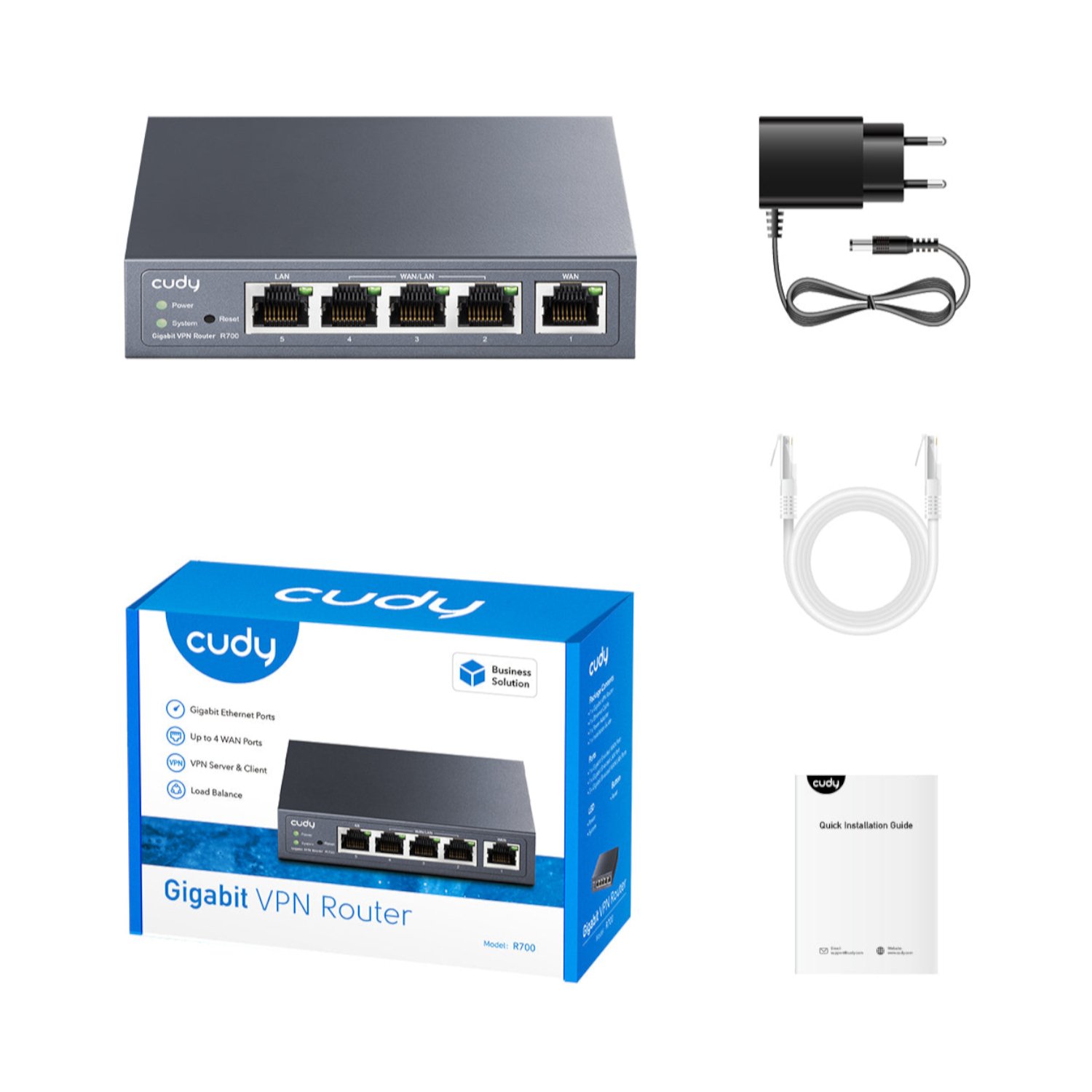

WHAT'S IN THE BOX:

• Cudy R700 Gigabit Multi-WAN VPN Router x1
• Power Adapter x1
• Ethernet Cable x1
• Installation Guide x1
