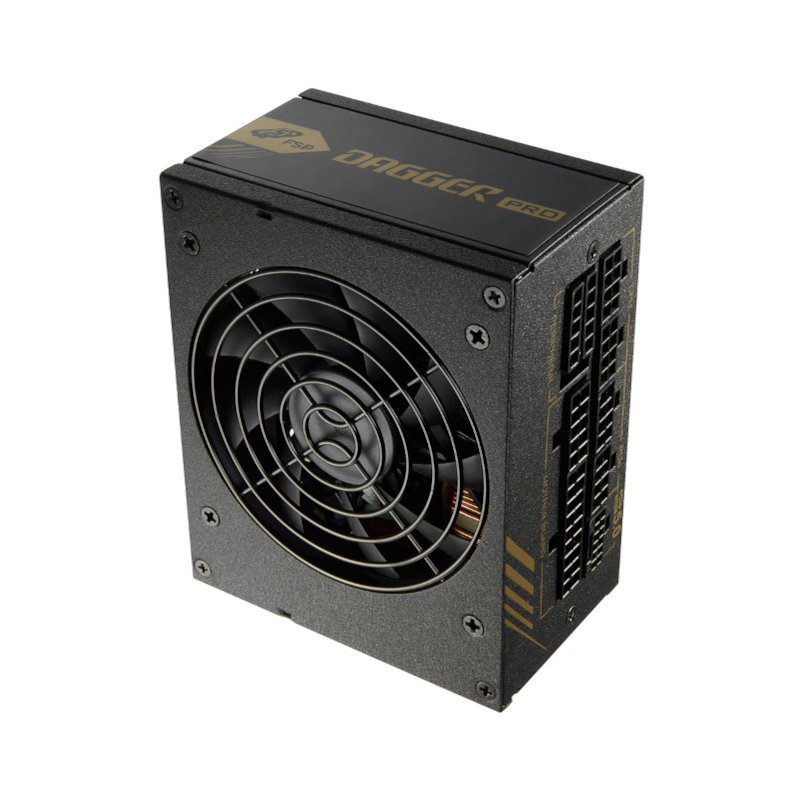

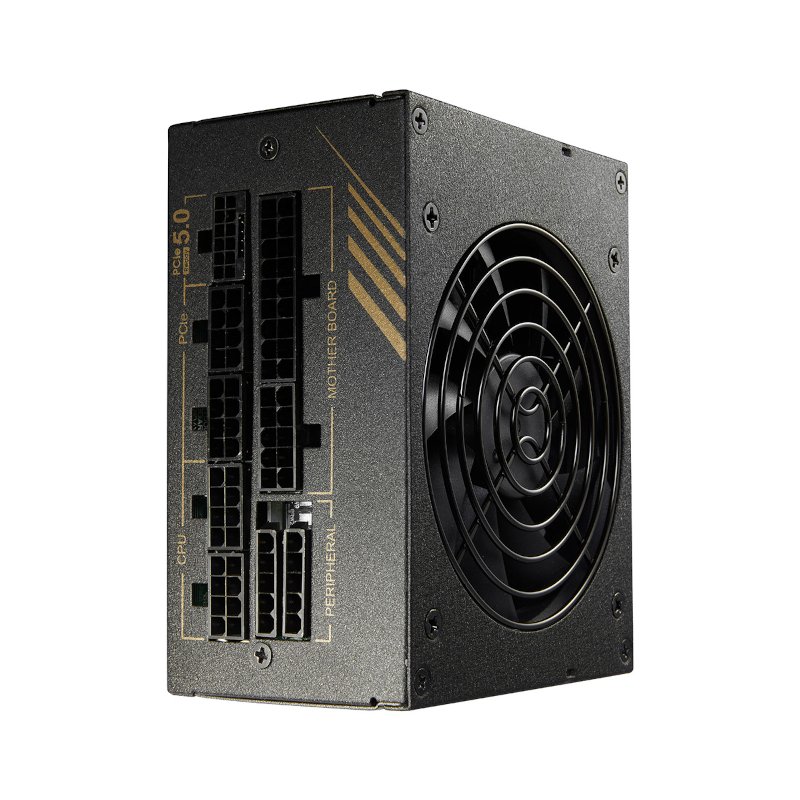

FSP Dagger Pro ATX3.0 (PCIe 5.0) 850w Fully Modular PSU

The DAGGER PRO 850W is a power supply with 80 PLUS® Gold Certification that guarantees to operate at a minimum of 90% efficiency at 50% the load of the PSU-rated power and as a result, reduces lots of electricity costs. The Fully-modular design and flat ribbon cables provide easier installation. An ideal solution for applications with space constraints, enhancing overall airflow efficiency and cable management.

The DAGGER PRO 850W comes with a native PCIe 5.0 connector for the latest graphic card and features dual CPU power connectors to support high-end motherboards for gaming enthusiasts. The VGA card is a component which needs greedy and stable power support most. The compact-sized DAGGER PRO ATX3.0 850W comes with a single +12V rail design that offers VGA cards full power individually and to avoid any overloading conditions.

It is compatible with most Mini-ITX and Micro ATX small form factor PCs. It is ideal for home computer rigs but a great alternative for mini-PC enthusiasts. It Adapts to your individual requirements, not only does it fit into cases with the SFX form factor but can also be installed in a simple step into normal ATX, Micro-ATX or Mini-ITX cases.

FEATURES:

• Compliance with ATX12V V3.0
• Compliance with PCIe 5.0
• Efficiency ≧ 90% at typical load
• MIA IC (Multiple Intelligence Ability) chipset inside
• Semi-fanless design for silent operation
• Quiet and long-lasting 92mm ball bearing fan
• Ribbon cables for the need of enthusiasts
• Powerful single +12V rail design
• Intel's Latest CPU ready
• Japanese electrolytic capacitors
• Full protections with OCP, OVP, SCP, OPP, OTP

SPECIFICATIONS:

• Rated Output Power: 850W
• Form Factor: SFX
• 80 PLUS Certification: Gold
• Input Voltage: 100-240V
• Input Current: 12-6A
• Input Frequency: 50-60Hz
• PFC: Active PFC
• Efficiency: 90%
• Fan Type: ball bearing fan,92mm
• Operation Temp: 200,000 Hrs
• Protection: OCP, OVP, SCP, OPP, OTP
• AC Input: 100-240Vac~ 12-6A 50-60Hz
• DC Output: +3.3V(20A), +5V(20A), +12V(70.83A), -12V(0.3A), +5Vsb(2.5A)

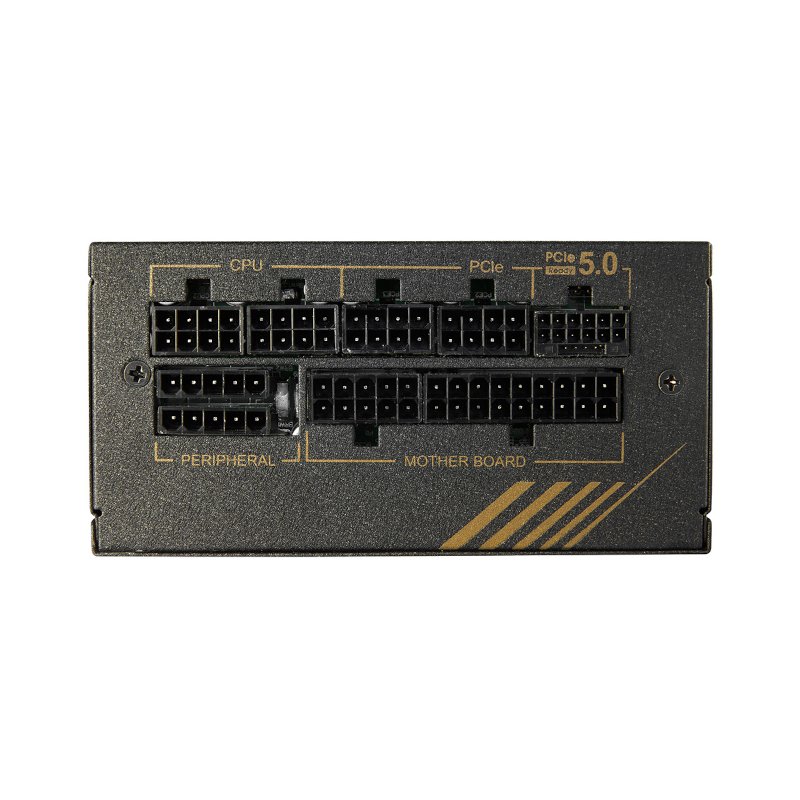

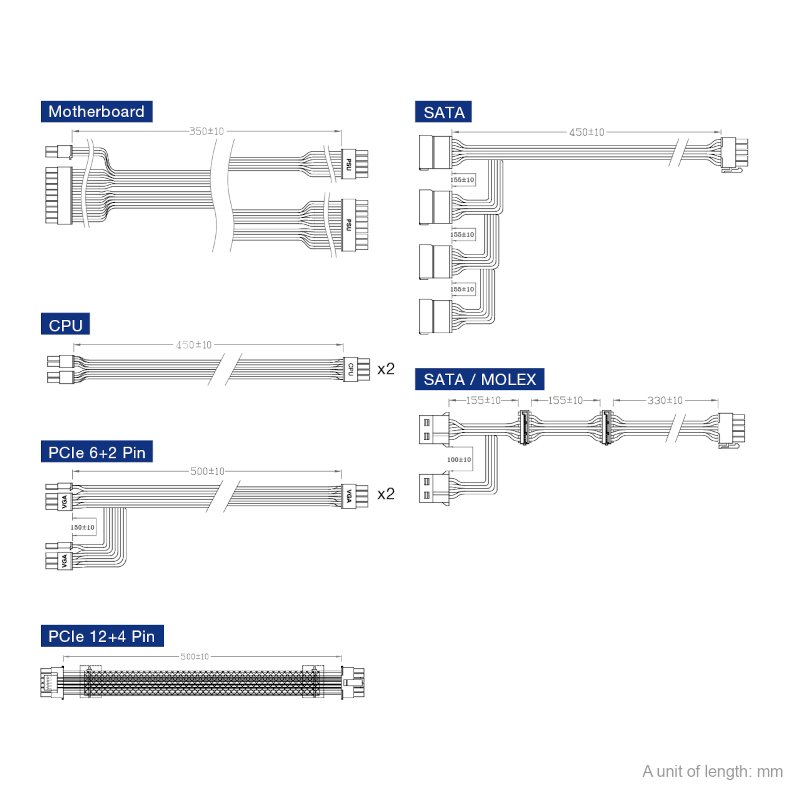

• Connectors:
• ATX 20+4 x1
• 4+4 PIN x2
• PCIe 6+2 x4
• 12VHPWR x1
• SATA x6
• Molex (peripheral) x2
• Product Dimensions: 12.5 × 10 × 6.4 cm

WHAT’S IN THE BOX:

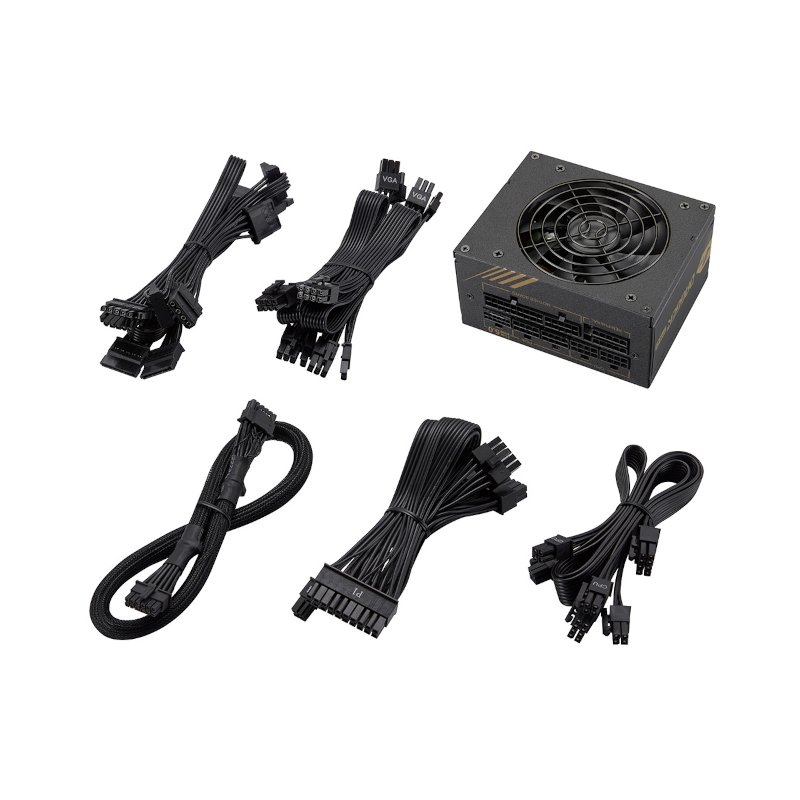

• FSP DAGGER PRO 850W Modular PSU x1
• Modular Cables Set x1
